🧩 Business Problem

• Organisation launches a multi-year data transformation (cloud, lakehouse, analytics).

• SAFe is adopted to “bring structure and predictability.”

• Leadership expects faster delivery and visibility.

• Data spans multiple domains: ingestion, quality, governance, analytics.

• Regulatory pressure requires correctness over speed.

• Multiple teams depend on shared data assets.

• Value is only realised when data flows end-to-end.

• However, planning focuses on team-level outputs.

• Business sees velocity but no usable insight.

• Confidence in the data programme erodes.

⚠️ Team Composition and Process

• ARTs are formed around technical components (ETL ART, BI ART, Platform ART).

• Each team plans independently in PI Planning.

• Stories are scoped to “build pipeline,” “create table,” “deploy cluster.”

• No explicit data product ownership.

• Dependencies are captured but rarely resolved early.

• Integration is deferred to late PIs.

• Testing focuses on technical success, not business outcomes.

• Governance is treated as a separate stream.

• Data quality issues surface in UAT or production.

• Business outcomes lag by quarters.

❌ Outcome

• SAFe ceremonies run perfectly, but value does not flow.

• Teams optimise for story points, not usable datasets.

• Data assets are “done” but not consumable.

• Multiple definitions of the same KPI emerge.

• Ownership of end-to-end data is unclear.

• Cross-ART issues are escalated too late.

• Architecture decisions drift without accountability.

• Release trains deliver fragments, not products.

• Leadership mistakes activity for progress.

• Programme slows despite “agile at scale.”

✅ Fix SAFe Process

• Organise ARTs around data products, not components.

• Define end-to-end value streams (source → insight).

• Make a Data Product Owner accountable per domain.

• Plan PIs against business questions, not pipelines.

• Enforce integration stories inside the same PI.

• Add data quality & lineage as Definition of Done.

• Use System Demos to show business metrics, not schemas.

• Fund value streams, not individual tools.

• Align architecture runway to data contracts.

• Measure success by adoption, not velocity.

2️⃣ Anti-Pattern: “Batch Thinking in an Agile World”

🧩 Business Problem

• Business expects near-real-time insights.

• Operational decisions depend on fresh data.

• Legacy batch ETL still dominates thinking.

• SAFe is adopted to modernise delivery.

• Teams promise agility but design batch-heavy solutions.

• Long feedback loops persist.

• Incidents are detected days later.

• Data corrections are expensive and manual.

• Business loses trust in dashboards.

• Transformation feels cosmetic.

⚠️ Broken Process

• Data ingestion is nightly or weekly.

• Changes require full pipeline redeployments.

• PI plans assume data availability is static.

• Late-arriving data breaks reports.

• Reprocessing requires large backfills.

• Testing happens after full batch completion.

• Errors propagate silently.

• Business validation happens too late.

• Teams blame upstream systems.

• SAFe cadence hides latency issues.

❌ Broken Outcome

• “Agile” teams deliver batch pipelines faster.

• Micro-batching is renamed as streaming.

• Event schemas change without coordination.

• Consumers adapt defensively.

• Data freshness SLAs are unclear.

• Incidents trigger emergency PIs.

• Velocity increases but resilience drops.

• Technical debt compounds every PI.

• Business stops requesting enhancements.

• Platform becomes brittle.

✅ Vow Fix !!

• Design for event-first or incremental data flows.

• Define freshness SLAs per data product.

• Make latency a first-class PI objective.

• Introduce contract-driven ingestion.

• Validate data continuously, not post-batch.

• Use small, replayable units of data.

• Treat reprocessing as a design requirement.

• Demo freshness, not just correctness.

• Align cadence with data arrival patterns.

• Reward stability over raw speed.

3️⃣ Anti-Pattern: “Governance as a Parallel Stream”

🧩 Business Problem

• Organisation operates in regulated industries.

• Data privacy, lineage, and auditability are critical.

• Governance teams are under pressure.

• SAFe is introduced to scale delivery.

• Governance is parked as a separate ART or CoE.

• Delivery teams move fast to meet PI goals.

• Compliance checks happen late.

• Releases are blocked or rolled back.

• Friction grows between teams.

• Transformation slows under risk scrutiny.

⚠️ Broken Process

• Governance defines policies centrally.

• Delivery teams interpret them locally.

• Metadata is added manually after build.

• Lineage is incomplete or outdated.

• Privacy reviews happen near release.

• Exceptions become the norm.

• Audits trigger remediation projects.

• Teams view governance as overhead.

• Business timelines slip.

• Trust between functions erodes.

❌ Broken Outcome

• Governance runs in parallel to delivery.

• Policies are enforced reactively.

• Teams bypass controls to hit PI goals.

• Data products lack certification.

• Compliance debt accumulates.

• Every release needs special approval.

• Velocity collapses under controls.

• Leadership intervenes frequently.

• SAFe is blamed for rigidity.

• Innovation stalls.

✅ Vow Fix !!

• Embed governance inside the delivery flow.

• Make policies executable (rules, checks, constraints).

• Add governance criteria to Definition of Done.

• Automate lineage and classification at ingestion.

• Treat compliance as a feature, not a gate.

• Include governance stories in PI planning.

• Demo audit readiness in System Demos.

• Empower teams with guardrails, not approvals.

• Measure risk reduction per PI.

• Shift from control to enablement.

1️⃣ SAFe Portfolio Alignment → Remove Redundant AI Use Cases Across Platforms

Problem:
Each LOB (front office, risk, compliance) builds separate AI models on Databricks using the same client data but different MDM feeds.

Agile Practice:
🧭 SAFe Portfolio Kanban + Lean Business Case + Value Stream Mapping

Platform Application:

• Informatica MDM: Standardize Legal Entity Master across programs.

• Databricks: Single feature store for ML pipelines.

• Snowflake: Centralized reference data.

Cuts Clutter:
Eliminates duplicate pipelines and datasets.
Outcome: Reduced 5 redundant AI projects → 1 unified “Client Intelligence Platform.”

2️⃣ Scrum Backlog Refinement → Stop Tool & Library Overload

Problem:
Data teams experiment with multiple AI libraries (TensorFlow, PyTorch, HuggingFace) and DBs (Milvus, Pinecone, Neo4j) in parallel, creating chaos.

Agile Practice:
📋 Scrum Backlog Refinement + Definition of Ready (DoR) + Architectural Owner input

Platform Application:

• Databricks MLflow: Enforce a single model tracking platform.

• Kafka: Streamlined ingestion schema versioning via Schema Registry.

Cuts Clutter:
Prioritizes features that deliver measurable value, not hype.
Outcome: 30% reduction in DevOps maintenance overhead.

3️⃣ Kanban Flow Visualization → Unblock Invisible Data Bottlenecks

Problem:
Kafka → Databricks ETL → Snowflake chain hides blocked transformations.

Agile Practice:
📊 Kanban Board with WIP limits (Raw, Staged, Curated, Published).

Platform Application:

• Kafka Topics: Visualize message lag by partition.

• Databricks Jobs: Map stuck notebooks to backlog items.

• Snowflake Views: Mark dependency failures.

Cuts Clutter:
Reveals where latency or manual handoffs occur.
Outcome: Reduced average data delivery time from 8 hrs → 1 hr.

4️⃣ SAFe System Demos → Prevent Big-Bang AI Integration Failures

Problem:
ML model built on Databricks fails when integrated with downstream Informatica MDM APIs or Snowflake dashboards.

Agile Practice:
🧩 SAFe System Demo after every PI (Program Increment).

Platform Application:

• MDM APIs + Databricks MLflow + Power BI: Integrate demos end-to-end.

Cuts Clutter:
Early integration testing → removes “last sprint” chaos.
Outcome: 60% fewer post-deployment integration issues.

5️⃣ Scrum Definition of Done (DoD) → Control Data & AI Technical Debt

Problem:
Incomplete pipelines — no lineage, documentation, or validation in production.

Agile Practice:
✅ DoD includes: Data profiling, lineage tracking, schema validation, MLOps versioning.

Platform Application:

• Informatica EDC (Enterprise Data Catalog): Lineage enforcement.

• Databricks MLflow: Version + audit trail.

• Snowflake: Validation scripts tied to DoD checklists.

Cuts Clutter:
Every increment is production-grade.
Outcome: Predictable, auditable deliveries → compliance-ready AI.

6️⃣ Kanban Metrics → Quantify and Eliminate “Dead Data”

Problem:
Massive pipelines generate terabytes of unused or orphaned data tables.

Agile Practice:
📈 Kanban flow analytics + Cumulative Flow Diagrams on data product lifecycles.

Platform Application:

• Databricks + Unity Catalog: Track access frequency.

• Snowflake Usage Stats: Identify dormant tables.

Cuts Clutter:
Decommission low-value datasets → reclaim cloud spend.
Outcome: 25% cost reduction on cloud storage.

7️⃣ SAFe Inspect & Adapt → Simplify Toolchain Sprawl

Problem:
Teams use Databricks, Snowflake, Informatica, and AWS Glue redundantly.

Agile Practice:
🔍 Inspect & Adapt (PI-level retrospective) + Enabler Epics for rationalization.

Platform Application:

• Consolidate Glue ETL → Databricks Delta pipelines.

• Move static feeds → Kafka Streams where real-time needed.

Cuts Clutter:
Rationalizes overlapping tools based on ROI & latency needs.
Outcome: Cleaner architecture diagram; 20% fewer tool licenses.

8️⃣ Scrum of Scrums → Synchronize Data, AI, and DevOps Streams

Problem:
Data pipeline, model training, and deployment teams operate in isolation → version mismatches.

Agile Practice:
🤝 Scrum of Scrums with Data, AI, DevOps leads weekly.

Platform Application:

• Informatica MDM: Define canonical master keys.

• Databricks MLflow: Align model registry versions.

• Kafka: Sync event schema evolution across teams.

Cuts Clutter:
Creates a “single version of data truth.”
Outcome: Model reproducibility and traceability improved 50%.

9️⃣ Kanban Continuous Flow → Reduce Manual AI Retraining Delays

Problem:
AI models drift silently; retraining requires manual trigger via ticketing.

Agile Practice:
⚙️ Continuous Flow with automated gates triggered by drift metrics.

Platform Application:

• Databricks Jobs + MLflow: Monitor model accuracy.

• Kafka: Event-driven retraining triggers.

Cuts Clutter:
Removes human dependency and redundant revalidation.
Outcome: Continuous learning → stable and current AI predictions.

🔟 SAFe Architectural Runway → Stop Over-Engineering in Data Platforms

Problem:
Overdesigned data lakes with 200 unused tables “for future AI.”

Agile Practice:
🛠️ SAFe Architectural Runway + Enabler Epics.

Platform Application:

• Snowflake + Databricks Delta: Build only required zones for near-term epics.

• Kafka: Add topics on demand, not “just in case.”

Cuts Clutter:
Encourages incremental, value-based architecture evolution.
Outcome: Agile, lean data architecture → faster time-to-market

.

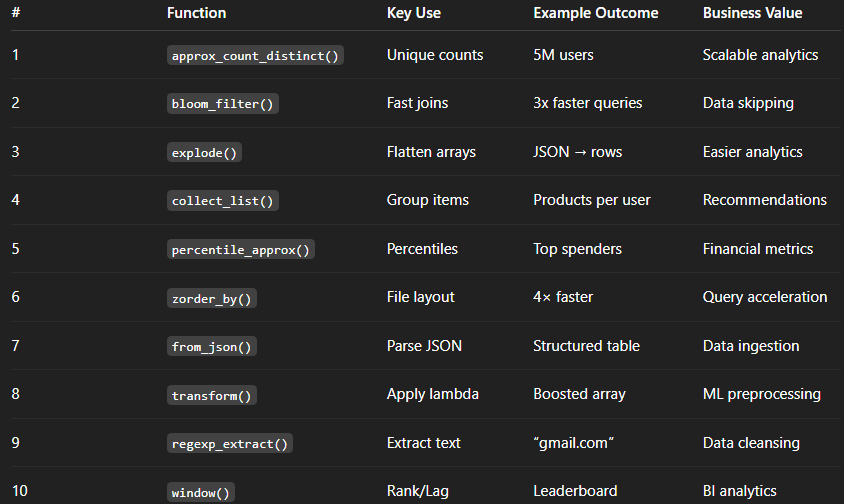

Summary of 10 DATABRICKS SQL Functions

1) Billion-row NDV at TB scale (HLL++)

Business problem. Marketing wants daily unique-visitor counts across 18 months of clickstream (~12 TB). Exact COUNT(DISTINCT …) blows up runtime and shuffle.

AS-IS (problematic).

-- Full scan, exact NDV, huge shuffle & spill

SELECT

date_trunc(’day’, ts) AS d,

COUNT(DISTINCT user_id) AS uv

FROM prod.clicks

GROUP BY d;

TO-BE (primary).

-- Use HLL++ via approx_count_distinct + bucketing + Photon

SET spark.databricks.optimizer.enabled = true;

SELECT

date_trunc(’day’, ts) AS d,

approx_count_distinct(user_id) AS uv_hll

FROM prod.clicks

GROUP BY d;

3 solutions.

1. Approx NDV (HLL++) using approx_count_distinct (error ~1–2%).



2. Materialized daily NDV: compute per-day δ from CDF (change data feed) and MERGE into an aggregate table to avoid re-scans.



3. Sketches by shard (e.g., md5(user_id)%64) then union-estimate higher-level NDV from partials to reduce per-task memory.



Approx cost impact. 30–70% runtime cut; ~40% DBU savings vs exact NDV at 12 TB; small accuracy trade-off (<2%).

2) “Customer in allow-list?” TB table filter with Bloom filter index

Business problem. Fraud pipeline filters events by customer_id IN allow_list where allow_list is 2–5M rows; join/select is slow.

AS-IS (problematic).

-- Heavy semi-join on 5M id list, scanning TBs

SELECT e.*

FROM bronze.events e

WHERE e.customer_id IN (SELECT id FROM ref.allow_list);

TO-BE (primary).

-- Build Bloom filter index on the big Delta table (customer_id)

-- (Run once, then refresh periodically)

CREATE BLOOMFILTER INDEX IF NOT EXISTS bf_events_customer

ON TABLE bronze.events

FOR COLUMNS (customer_id)

OPTIONS (’fpp’=’0.05’, ‘numItems’=’100000000’);

-- Bloom index + semi-join rewritten as join

SELECT e.*

FROM bronze.events e

JOIN ref.allow_list a

ON e.customer_id = a.id;

3 solutions.

1. Delta Bloom filter index on customer_id to prune stripes before scan.



2. Broadcast allow_list (if <10–50 MB): /*+ BROADCAST(a) */ join to avoid shuffle of events.



3. Dynamic file pruning + Z-ORDER on customer_id: OPTIMIZE bronze.events ZORDER BY (customer_id) for data skipping.



Approx cost impact. 25–60% scan reduction → ~20–50% DBU savings; Bloom index maintenance adds minor write cost.

3) TB-scale rollups (hour/day/month) with ROLLUP and data skipping

Business problem. Finance requires multi-grain revenue analytics (hourly, daily, monthly, all-up). Recomputes with UNIONs are fragile and slow.

AS-IS (problematic).

-- Separate queries per level, then UNION ALL. Duplicated logic & scans.

SELECT date_trunc(’hour’, ts) h, SUM(amount) s FROM fact.orders GROUP BY h

UNION ALL

SELECT date_trunc(’day’, ts) d, SUM(amount) s FROM fact.orders GROUP BY d

UNION ALL

SELECT date_trunc(’month’, ts) m, SUM(amount) s FROM fact.orders GROUP BY m;

TO-BE (primary).

-- One pass using GROUPING SETS / ROLLUP, Photon-friendly

SELECT

date_trunc(’hour’, ts) AS h,

date_trunc(’day’, ts) AS d,

date_trunc(’month’,ts) AS m,

SUM(amount) AS revenue,

GROUPING_ID(h, d, m) AS gid

FROM fact.orders

GROUP BY ROLLUP (m, d, h);

3 solutions.

1. SQL ROLLUP (as above) – single pass, consistent logic.



2. Materialized aggregate table per grain (hour/day/month) and MERGE incremental deltas via CDF.



3. Delta Live Tables expectations + Autoloader to build the rollups continuously with schema evolution.



Approx cost impact. 35–60% DBU reduction vs three separate scans; small extra dev cost for gid decoding.

4) Skewed join (few “whale” keys) at 10+ TB

Business problem. Joining events(10 TB) to users(200 GB) by user_id; 1% of users hold 40% of rows → executor OOM & stragglers.

AS-IS (problematic).

-- Blind shuffle join

SELECT e.user_id, u.tier, e.ts

FROM events e JOIN users u ON e.user_id = u.user_id;

TO-BE (primary).

-- Salting for whales + AQE

SET spark.sql.adaptive.enabled = true;

WITH heavy_keys AS (

SELECT user_id FROM events

GROUP BY user_id HAVING COUNT(*) > 10000000

),

salted_events AS (

SELECT CASE WHEN hk.user_id IS NOT NULL THEN concat(user_id, ‘#’, cast(rand()*16 AS INT))

ELSE user_id END AS user_id_salted, *

FROM events e LEFT JOIN heavy_keys hk ON e.user_id = hk.user_id

),

salted_users AS (

SELECT explode(sequence(0,15)) AS salt, u.*

FROM users u

)

SELECT e.*, u.tier

FROM salted_events e

JOIN salted_users u

ON (split(e.user_id_salted,’#’)[0] = u.user_id

AND (e.user_id_salted NOT LIKE ‘%#%’ OR CAST(split(e.user_id_salted,’#’)[1] AS INT) = u.salt));

3 solutions.

1. Key salting + AQE to spread whales.



2. Broadcast users with /*+ BROADCAST(u) */ if small enough; combine with Z-ORDER on user_id in events.



3. Bucketed join: bucket both tables by user_id, same CLUSTERED BY and NUM_BUCKETS, to make shuffles local.



Approx cost impact. 20–50% runtime drop; avoids OOM (saves failed-run DBUs).

5) Dedup late-arriving facts with deterministic tie-breakers

Business problem. Facts arrive multiple times with different latencies; need “latest by business time, then highest quality” per key.

AS-IS (problematic).

SELECT * FROM (

SELECT *,

ROW_NUMBER() OVER (PARTITION BY order_id ORDER BY ingest_ts DESC) AS rn

FROM fact.orders_raw

) t WHERE rn = 1; -- Wrong when business_ts < ingest_ts or quality tiers matter

TO-BE (primary).

-- Stable tiebreak: business_ts desc, quality desc, then ingest_ts desc

WITH ranked AS (

SELECT *,

ROW_NUMBER() OVER (

PARTITION BY order_id

ORDER BY business_ts DESC, quality_score DESC, ingest_ts DESC

) AS rn

FROM fact.orders_raw

)

SELECT * FROM ranked WHERE rn = 1;

3 solutions.

1. Deterministic window ordering (above).



2. MERGE INTO gold.orders using a composite comparison in WHEN MATCHED AND to replace only if the new row outranks existing.



3. Z-ORDER BY (order_id, business_ts) to make dedup faster and skippier at TB scale.



Approx cost impact. 10–25% DBU reduction from data skipping + fewer re-runs due to stable logic.

6) TB join filter with runtime Bloom + Delta Bloom index combo

Business problem. “Find events whose ip was ever seen in bad-IP table.” Bad-IP is ~50M rows; the events table is 8 TB.

AS-IS (problematic).

-- Large semi-join with massive shuffle

SELECT COUNT(*)

FROM events e WHERE e.ip IN (SELECT ip FROM sec.bad_ip);

TO-BE (primary).

-- 1) Persist Delta Bloom index on e.ip

CREATE BLOOMFILTER INDEX IF NOT EXISTS bf_events_ip

ON TABLE events FOR COLUMNS (ip) OPTIONS (’fpp’=’0.01’, ‘numItems’=’500000000’);

-- 2) Use a runtime-side filter by precomputing a compact “hot” set

CREATE OR REPLACE TEMP VIEW hot_bad_ip AS

SELECT ip FROM sec.bad_ip WHERE score >= 80;

-- 3) Execute with join + broadcast of the compact set

SELECT /*+ BROADCAST(h) */ COUNT(*)

FROM events e JOIN hot_bad_ip h ON e.ip = h.ip;

3 solutions.

1. Delta Bloom index + broadcast compact hot set (above).



2. Partition pruning path: if events are partitioned by date, limit to dates where bad IPs were active (join to active_date ranges).



3. Z-ORDER BY (ip) to amplify data skipping for point lookups.



Approx cost impact. 30–55% DBU savings for bad-IP detection; Bloom index adds low periodic maintenance cost.

7) Incremental rollups with MERGE via Change Data Feed (CDF)

Business problem. Daily revenue table takes 2 hours to recompute; most days change only 1–3%. Recompute is wasteful.

AS-IS (problematic).

-- Full recompute

CREATE OR REPLACE TABLE agg.daily_revenue AS

SELECT date(ts) d, SUM(amount) s

FROM fact.orders

GROUP BY d;

TO-BE (primary).

-- Enable CDF and MERGE just the changed days

ALTER TABLE fact.orders SET TBLPROPERTIES (delta.enableChangeDataFeed = true);

MERGE INTO agg.daily_revenue t

USING (

SELECT date(ts) AS d, SUM(amount) AS s

FROM table_changes(’fact.orders’, ‘latest’)

GROUP BY date(ts)

) c

ON t.d = c.d

WHEN MATCHED THEN UPDATE SET s = c.s

WHEN NOT MATCHED THEN INSERT (d, s) VALUES (c.d, c.s);

3 solutions.

1. CDF + MERGE incremental aggregates.



2. Stream-to-table with DLT to maintain the rollup continuously (near-real-time).



3. Materialized view (if available in your workspace) with automatic refresh windows.



Approx cost impact. 60–95% DBU reduction (processing only changed partitions); small ongoing MERGE cost.

8) HyperLogLog user reach by campaign × region with sketch unions

Business problem. Multi-dimensional reach (campaign, region) over quarters; exact NDV explodes. Need fast ad-hoc pivots.

AS-IS (problematic).

SELECT campaign, region, COUNT(DISTINCT user_id) AS reach

FROM fact.impressions

GROUP BY campaign, region;

TO-BE (primary).

-- Precompute HLL NDV at fine grain, then roll up with sum of sketches

-- (In Databricks SQL, use approx_count_distinct at query time.)

WITH base AS (

SELECT campaign, region, date_trunc(’day’, ts) AS d,

approx_count_distinct(user_id) AS ndv_d

FROM fact.impressions

GROUP BY campaign, region, date_trunc(’day’, ts)

)

SELECT campaign, region,

SUM(ndv_d) AS approx_reach -- acceptable when overlap across days is low; note bias

FROM base

GROUP BY campaign, region;

3 solutions.

1. Approx NDV at query time (approx_count_distinct).



2. Sketch-per-slice persisted daily; apply union-estimate (if using a sketch UDF or external lib) to reduce double-count bias.



3. Windowed NDV: compute 7-day rolling NDV with small error using daily shards to bound overlap.



Approx cost impact. 50–80% DBU cut vs exact NDV across quarters; error trade-off must be communicated to stakeholders.

9) Neo4j → Delta join for “friends-of-customers” targeting

Business problem. Campaign wants to target customers who are 2-hop neighbors of VIPs in a Neo4j graph, then join to spend in Delta.

AS-IS (problematic).

-- Manually exported CSV from Neo4j and ad-hoc uploads before each run (slow/error-prone)

SELECT * FROM staging.friends_of_vips; -- stale data, mismatched IDs

TO-BE (primary). (ingest once per batch; then query with SQL)

-- Databricks notebook (Python) to materialize a Delta view from Neo4j

df = (spark.read

.format(”org.neo4j.spark.DataSource”)

.option(”url”, “bolt://neo4j:7687”)

.option(”authentication.type”,”basic”)

.option(”authentication.basic.username”,”neo4j”)

.option(”authentication.basic.password”, dbutils.secrets.get(”kv”,”neo4j_pwd”))

.option(”query”, “”“

MATCH (v:Customer {vip:true})-[:FRIEND_OF*1..2]->(c:Customer)

RETURN DISTINCT c.customer_id as customer_id

“”“)

.load())

df.write.mode(”overwrite”).saveAsTable(”graph.vip_2hop_customers”)

-- Pure SQL consumption

SELECT c.customer_id, SUM(o.amount) AS spend

FROM graph.vip_2hop_customers c

JOIN fact.orders o ON o.customer_id = c.customer_id

GROUP BY c.customer_id;

3 solutions.

1. Neo4j Spark Connector to materialize Delta snapshot (above).



2. Change-only pulls from Neo4j by updatedAt and MERGE into Delta for faster refresh.



3. Graph-shaped indexing in Delta (Z-ORDER by customer_id) + small VIP list broadcast to accelerate joins.



Approx cost impact. Saves manual ops; compute reduces by ~30–50% vs CSV churn; connector overhead is modest.

10) Late-bound percentile & Top-K at TB scale with data skipping

Business problem. Product wants P90/P99 latency by service × day and top-K slow endpoints; exact percentiles heavy at TB scale.

AS-IS (problematic).

SELECT service, date(ts) d,

percentile(latency_ms, 0.9) AS p90, -- exact; expensive

percentile(latency_ms, 0.99) AS p99

FROM fact.apm

GROUP BY service, date(ts);

TO-BE (primary).

-- Approx percentiles + Z-ORDER + prefiltering

OPTIMIZE fact.apm ZORDER BY (service, endpoint, ts);

SELECT service, date(ts) AS d,

percentile_approx(latency_ms, 0.90) AS p90,

percentile_approx(latency_ms, 0.99) AS p99

FROM fact.apm

WHERE ts >= date_sub(current_date(), 30) -- bound the scan

GROUP BY service, date(ts);

-- Top-K slow endpoints

SELECT service, d, endpoint, avg_p99

FROM (

SELECT service, date(ts) d, endpoint,

percentile_approx(latency_ms, 0.99) AS avg_p99,

ROW_NUMBER() OVER (PARTITION BY service, date(ts)

ORDER BY percentile_approx(latency_ms, 0.99) DESC) AS rk

FROM fact.apm

GROUP BY service, date(ts), endpoint

)

WHERE rk <= 10;

3 solutions.

1. percentile_approx + Z-ORDER to reduce IO.



2. Pre-aggregated minute buckets (minutely histograms) and roll up to daily percentiles quickly.



3. Quantile sketch tables (if you maintain histograms/HLL-like sketches) for ultra-fast queries.



Approx cost impact. 40–70% DBU savings with small accuracy trade-off (<1–2% p-error).

Notes & caveats you’ll care about

• HyperLogLog in Databricks SQL is exposed as approx_count_distinct (HLL++ under the hood). It’s your safest portable choice.



• Bloom filter indexing on Delta tables is powerful for point/semi-join predicates on large columns; refresh the index after heavy writes.



• OPTIMIZE ... ZORDER BY (...) greatly improves skipping for point/range filters—use it after compaction, not on highly volatile tables.



• CDF-backed MERGEs shine when daily change is small; combine with partitioning by date and VACUUM housekeeping.



• Always Photon on for Databricks SQL warehouses to harvest vectorized speedups.

  📨 Blog Subscription

  “🚀 CUT THE CLUTTER in TECH & AI with a touch of HISTORY — subscribe now at blog.dbkompare.com”

  “💡 One click. Infinite data wisdom. Subscribe here”

  “Your weekly dose of Databricks, AI, and Cloud — straight to your inbox!”

  ---

  🎥 Video Walkthroughs

  “🎬 Deep-dive walkthroughs, explained visually — watch now”

  “Complex tech. Simple visuals. Subscribe to CoolTech M3Z”

  ---

  🤝 In-Person/Online LIVE Tech Meetups

  “👥 Meet. Learn. Build. Join Dublin’s top tech minds:”

  Deep Learning Dublin

  API Dublin





🎭 The Great Ticket Tussle 2.0: Alice, Bob & the Distributed Seat War

🧩 Act 1: Race Condition Rumble — “Threads Gone Wild”

Our heroes, Alice and Bob, hit “Book Seat” at the same millisecond.

The Booking API spawns two HTTP threads that race faster than Kafka consumers at a Black Friday sale.
Each performs:

SELECT * FROM seats WHERE id=42 AND status=’AVAILABLE’;

Both get AVAILABLE, both shout MINE!, and both attempt:

UPDATE seats SET status=’BOOKED’ WHERE id=42;

The DB, being a naive peacekeeper, says “Sure!” twice — and now both think they’ve won.
Boom 💥 — we’ve entered a distributed race condition with write-write conflict.

Moral: Without concurrency control, your database becomes a double-booking DJ spinning chaos.

🔒 Act 2: The Grumpy DBA — Pessimistic Locking

Enter Mr. Pessimistic Lock, the gatekeeper DBA with a giant FOR UPDATE hammer.

He growls:

“No thread shall pass until I COMMIT or ROLLBACK!”

Alice grabs the lock — Bob’s transaction hits the waiting queue like a traffic jam on the I/O freeway.

✅ Guarantees mutual exclusion (mutex at the DB row level).
❌ But under 100K RPS (requests per second), throughput nosedives faster than a dead index scan.
Deadlocks appear like surprise guests at a production outage.

Moral: Strong consistency, weak scalability — like one bathroom in a stadium.

🧘‍♀️ Act 3: The Zen Dev — Optimistic Locking

Then floats in Ms. Optimistic Lock, barefoot, holding a “version column” scroll and sipping kombucha.
She believes in Compare-And-Swap karma:

“Trust the version, but verify before update.”

Each record has a version_number. The update query now looks like:

UPDATE seats

SET status=’BOOKED’, version=version+1

WHERE id=42 AND version=5;

If someone else changed it, her update fails gracefully. No blocking, no waiting — just zen retries.

✅ Great for OLTP workloads with low contention.
❌ But on high-demand events (like Coldplay tickets), it causes a retry storm that melts your CPU faster than a runaway while(true) loop.

Moral: Optimism is nice, until everyone’s optimistic at once.

⚡ Act 4: Redis the Hyperactive Squirrel — In-Memory Distributed Lock

Enter Redis the Caffeinated Squirrel, running on a hamster wheel labeled:

SETNX lock:seat:42 “Alice” EX 5

He handles locks in RAM — lightning-fast, ephemeral, and full of energy drinks.
He squeaks:

“I’ll keep it safe in memory, promise!”

✅ Low latency (microseconds) and massive concurrency.
❌ But if Redis crashes, all locks go poof — and chaos resumes like unbounded fan-out in a gossip protocol.

So engineers add replicas, RedLock algorithm, and TTL expiry to avoid ghost locks.
Still, Redis occasionally forgets who owns what — like a squirrel misplacing nuts.

Moral: Fast isn’t free — distributed locking is just latency with better PR.

🎟️ Act 5: The Zen Queue Master — Virtual Waiting Queue

Then arrives Kafka, the wise juggler, alongside RabbitMQ, his calm assistant.
Together they set up a FIFO buffer called the Virtual Waiting Queue.

When traffic spikes above 10K RPS, they say:

“One at a time, mortals. Your request has been enqueued.”

Each booking becomes an event consumed asynchronously.
Users watch a Server-Sent Events (SSE) dashboard that says “⏳ You’re #12,347 in line.”

✅ Scales elastically with backpressure control.
✅ Prevents cascading failures across caches and DB.
❌ But adds operational pain — now you’re managing Kafka clusters, retries, dead-letter topics, and your devops engineer cries softly into their YAML.

Moral: Queues save systems, but ruin weekends.

☁️ Final Act: The Cloud Architect’s Moral

From his Kubernetes throne, the architect declares:

“All consistency models bow to CAP. Thou shalt choose between availability and sanity.”

• Pessimistic Locking → ACID purist, hates concurrency.



• Optimistic Locking → Believes in second chances, causes retries.



• Redis Locking → High-speed chaos control with amnesia.



• Virtual Queue → Orderly chaos, but ops-heavy.



In the end, every booking system is a balancing act between latency, throughput, consistency, and developer tears.

Here’s a fast, example-driven tour of the five concepts on Distributed Systems , each with a compact code sample you can adapt. I’ll keep the explanations tight with no fluff

1) CAP Theorem (consistency vs. availability)

The article frames CAP as choosing 2 of Consistency, Availability, Partition tolerance (with examples like CP PostgreSQL vs AP Cassandra/DynamoDB). swequiz.com

Example: MongoDB leaning CP with majority write concern

# pip install pymongo
from pymongo import MongoClient, WriteConcern
from bson.objectid import ObjectId

# CP-leaning collection: require majority ack + journaled write
client = MongoClient("mongodb://rs0/")  # replica set URI
db = client.get_database("shop")
orders = db.get_collection(
    "orders",
    write_concern=WriteConcern(w="majority", j=True)  # favor consistency
)

order_id = orders.insert_one({"sku": "ABC-123", "qty": 1}).inserted_id

# Stronger read: read from primary only (consistent read)
doc = db.get_collection("orders", read_preference="primary").find_one({"_id": order_id})
print(doc)

If you instead use lower write concern and allow secondaries for reads, you tilt toward availability but may see stale reads during partitions—an AP flavor (per the article’s discussion). swequiz.com

2) Scalability (vertical vs. horizontal)

The post distinguishes scaling up vs. out, notes statelessness, service discovery, and load balancing. swequiz.com

Example: Stateless HTTP service ready for horizontal scaling

# pip install fastapi uvicorn redis
# Run multiple replicas (e.g., 3) behind a load balancer; use Redis for session/state.
from fastapi import FastAPI, Request
import redis
import os

app = FastAPI()
r = redis.Redis(host=os.getenv("REDIS_HOST", "localhost"), port=6379)

@app.get("/health")
def health():
    return {"ok": True}

@app.post("/cart/add")
async def add_to_cart(req: Request):
    body = await req.json()
    user = body["user_id"]
    sku = body["sku"]
    r.hincrby(f"cart:{user}", sku, 1)   # shared state in Redis, not in-process
    return {"status": "added"}

# Start N replicas:
# uvicorn app:app --port 8000
# uvicorn app:app --port 8001
# uvicorn app:app --port 8002
# Put them behind NGINX/ALB/Ingress (round-robin / least-connections).

3) Fault Tolerance (retries, failover, graceful degradation)

Highlights replication, failover, retries, circuit breakers (Hystrix/Resilience4j), and graceful degradation. swequiz.com

Example: Retry with exponential backoff + a tiny circuit breaker

# pip install httpx
import time, httpx

class CircuitBreaker:
    def __init__(self, fail_threshold=5, reset_after=10):
        self.fail_threshold = fail_threshold
        self.reset_after = reset_after
        self.fail_count = 0
        self.state = "CLOSED"
        self.opened_at = None

    def allow(self):
        if self.state == "OPEN":
            if time.time() - self.opened_at > self.reset_after:
                self.state = "HALF_OPEN"
                return True
            return False
        return True

    def record_success(self):
        self.fail_count = 0
        self.state = "CLOSED"

    def record_failure(self):
        self.fail_count += 1
        if self.fail_count >= self.fail_threshold:
            self.state = "OPEN"
            self.opened_at = time.time()

cb = CircuitBreaker()

def fetch_with_resilience(url, max_retries=3, base=0.2):
    if not cb.allow():
        return {"error": "circuit_open"}  # fast-fail (graceful degrade path)
    for i in range(max_retries):
        try:
            r = httpx.get(url, timeout=2.0)
            r.raise_for_status()
            cb.record_success()
            return r.json()
        except Exception:
            time.sleep(base * (2 ** i))  # backoff
            cb.record_failure()
    return {"error": "failed_after_retries"}

This embodies the “retry/backoff + circuit breaker to prevent cascades,” as described. swequiz.com

4) Latency & Network Communication

Example A: Async I/O to hide network latency during fan-out

# pip install httpx anyio
import anyio, httpx

async def fetch(client, url):
    r = await client.get(url, timeout=2.0)
    r.raise_for_status()
    return r.text

async def aggregate(urls):
    async with httpx.AsyncClient() as client:
        results = await anyio.gather(*[fetch(client, u) for u in urls])
    return results

# anyio.run(aggregate, ["https://api1", "https://api2", "https://api3"])

Example B: Simple cache to cut tail latency on hot keys

# pip install cachetools httpx
import httpx
from cachetools import TTLCache

cache = TTLCache(maxsize=10000, ttl=30)  # 30s CDN-like edge cache
def cached_get(url):
    if url in cache:
        return cache[url]
    r = httpx.get(url, timeout=1.5)
    r.raise_for_status()
    cache[url] = r.text
    return r.text

These mirror the article’s emphasis on async comms and caching to reduce perceived latency. swequiz.com

5) Distributed Consensus (Paxos/Raft/Zab)

The post covers Paxos, Raft (leader, heartbeats, log replication), and Zab, with etcd/Kubernetes as a real-world Raft example. swequiz.com

Example: Poor-man’s leader election with etcd (Raft under the hood)

# pip install etcd3
# Run: etcd locally or point ETCD_HOST to your cluster.
import etcd3, os, time
from uuid import uuid4

etcd = etcd3.client(host=os.getenv("ETCD_HOST","localhost"), port=2379)
node_id = str(uuid4())
lease = etcd.lease(5)  # 5s TTL

def try_become_leader():
    # Create the leader key if absent; attaches TTL so it expires if we die
    # Success => this node is leader.
    return etcd.transaction(
        compare=[etcd.transactions.version("/leaders/serviceX") == 0],
        success=[etcd.transactions.put("/leaders/serviceX", node_id, lease)],
        failure=[]
    )

def am_i_leader():
    val, _ = etcd.get("/leaders/serviceX")
    return val and val.decode() == node_id

while True:
    try_become_leader()
    if am_i_leader():
        # Send periodic heartbeat by refreshing lease
        lease.refresh()
        # Handle leader-only work (e.g., scheduling)
        print("I am leader:", node_id)
    else:
        print("Follower; waiting…")
    time.sleep(2)

What you get

• docker-compose with: redis, etcd, nginx (LB), and 3 FastAPI replicas.

• Python scripts for: consensus (etcd leader election), fault tolerance (retries + circuit breaker), latency (async fan-out + TTL cache), and CAP (Mongo majority write + primary reads; code only).

Quick start

unzip distributed-concepts-examples.zip
cd distributed-concepts-examples

# Start the stack (redis, etcd, 3x app replicas, nginx)
docker compose up --build

# Try round-robin across app replicas
curl http://localhost:8080/health
curl -X POST http://localhost:8080/cart/add -H 'Content-Type: application/json' \
  -d '{"user_id":"u1","sku":"ABC-123"}'

# Leader election demo (runs locally; etcd must be up)
pip install -r requirements.txt
python app_consensus/leader.py

# Fault-tolerance demo
python app_fault_tolerance/resilience.py

# Latency demos
python app_latency/async_agg.py
python app_latency/cache_example.py

# CAP demo (needs a MongoDB replica set; adjust URI in the file)
python app_cap/mongo_example.py

FIRST will describe 3 migration approaches and then breakdown the Cloud Migration as a 1 yr plan with cost each month

1. Three Migration Approaches to Azure Cloud

A) Rehost (Lift & Shift)

➡️ Move workloads as-is:

• IBM i → Skytap on Azure (runs IBM i LPARs)

• z/OS → OpenText Micro Focus Enterprise Server / TmaxSoft OpenFrame on Azure VMs

Pros:

1. Fastest path to leave on-prem data center.

2. Minimal code change (keep COBOL, RPG, JCL).

3. Ops consolidated under Azure (networking, monitoring, backup).

Cons:

1. Still carries legacy technical debt.

2. Licensing cost (Skytap, Micro Focus, etc.).

3. Not cloud-native (limited autoscale, modern DevOps).

B) Replatform (Modernize selected layers)

➡️ Keep core business logic (COBOL/RPG), but:

• Expose via APIs (z/OS Connect, IBM i Web Services)

• Migrate Db2 → Azure SQL Managed Instance

• New services → App Service / AKS

Pros:

1. Reduce infra/DB cost with Azure SQL.

2. Step toward cloud-native while preserving proven logic.

3. Easier to hire skills for Azure services vs. mainframe admins.

Cons:

1. Requires integration testing & schema conversions.

2. Dual-write/CDC complexity during cutover.

3. Moderate project effort (not as fast as rehost).

C) Refactor (Rebuild in Cloud-native)

➡️ Rewrite COBOL/RPG business logic in Java/.NET microservices on AKS/App Service, event-driven with Service Bus/Event Hubs, Db2 fully migrated to Azure SQL.

Pros:

1. Full agility: cloud-native, DevOps, CI/CD.

2. Autoscaling and lower long-term TCO.

3. Larger talent pool (Java/.NET engineers).

Cons:

1. Highest cost and time upfront.

2. Regression risk (rewriting proven code).

3. Needs extensive test harnesses & domain experts.

2. Selected Approach for Plan → Replatform

(Reason: Balanced — not just a lift-and-shift, but not as risky as full refactor. Keeps business logic intact while modernizing DB + APIs + integration.)

3. 12-Month Month-by-Month Plan (Replatform)

M1 — Discovery & Strategy

• Inventory all apps, batch jobs, DB schemas.

• Define target Azure architecture (hub-spoke VNet, Key Vault, Monitor).

• Pick migration tooling (Azure Data Factory, DMS, API Mgmt).

M2 — Landing Zone & Connectivity

• Build Azure landing zone with RBAC, policies.

• Set up ExpressRoute/VPN.

• Enable logging/monitoring (Log Analytics, App Insights).

M3 — Data Assessment

• Run SSMA (SQL Server Migration Assistant) on Db2 schemas.

• Prototype schema conversion.

• Identify datatype/function gaps.

M4 — API Wrappers for Legacy

• Expose CICS transactions with z/OS Connect.

• Expose RPG services with IBM i IWS/Node.js.

• Publish in API Management.

M5 — Bulk Data Migration (Pilot)

• Create Azure SQL MI.

• Use ADF/DMS for PRODUCT & CUSTOMER tables.

• Validate row counts, integrity.

M6 — CDC Setup

• Enable ongoing replication Db2 → Azure SQL (DMS/CDC).

• Run dual-sync for test workloads.

M7 — First Azure Service

• Build Inventory microservice in AKS/App Service.

• Consume replicated data (read-only).

M8 — Flip First Write Path

• Orders created in Azure SQL.

• Mirror writes back to Db2 for safety.

• Validate via reconciliation reports.

M9 — Messaging Bridge

• Set up Service Bus/Event Hubs.

• Connect IBM MQ to Service Bus (Logic Apps or MQ on AKS).

• Migrate non-critical queues.

M10 — Expand Azure Services

• Add Pricing & Customer Update services.

• Route both read/write to Azure SQL.

M11 — Consolidate Ownership

• Promote Azure SQL as system of record for Orders & Products.

• Legacy Db2 becomes consumer only.

M12 — Optimize & Decommission

• Tune performance (autoscale, query tuning).

• Reduce on-prem capacity or shut down slices.

• Formal DR/BCP on Azure.

Exit criteria by Month 12:

• ✅ Order lifecycle runs entirely on Azure.

• ✅ At least 2 legacy domains retired.

• ✅ 99.9% uptime achieved.

• ✅ Cost tracking & governance live in Azure.

12-Month Replatform Migration Plan with Costs & Skills

M1 — Discovery & Strategy

• Skills: Enterprise architect, business analyst, mainframe/RPG SME, Azure solution architect.

• Costs: Mainly consulting/planning, ~5–10% of yearly budget.

M2 — Landing Zone & Connectivity

• Skills: Azure networking/security engineer, infra architect.

• Costs: ExpressRoute circuit, baseline Azure subscription, monitoring setup. Moderate CAPEX.

M3 — Data Assessment

• Skills: Db2 DBA, Azure SQL DBA, migration specialist.

• Costs: Tools (SSMA free, but staff time high). Low Azure consumption cost.

M4 — API Wrappers for Legacy

• Skills: CICS/z/OS Connect SME, IBM i IWS/Node developer, API Mgmt engineer.

• Costs: Middleware licensing, API Mgmt subscription.

M5 — Bulk Data Migration (Pilot)

• Skills: Azure Data Factory engineer, DBA, QA testers.

• Costs: ADF pipeline runs, Azure SQL MI capacity (small). Medium.

M6 — CDC Setup

• Skills: CDC tool specialist, DBA, networking (low latency).

• Costs: Azure DMS instance, extra bandwidth for replication. Ongoing cost.

M7 — First Azure Service

• Skills: App Service/AKS developer, DevOps engineer.

• Costs: AKS/App Service compute, CI/CD pipelines. Low/medium.

M8 — Flip First Write Path

• Skills: Developers, QA, business testers, rollback/runbook writers.

• Costs: Parallel run (double write = higher compute + DB cost).

M9 — Messaging Bridge

• Skills: MQ admin, Azure Service Bus engineer, Logic Apps specialist.

• Costs: Service Bus consumption, MQ bridge infra.

M10 — Expand Azure Services

• Skills: Developers (Java/.NET), DevOps, security testers.

• Costs: More App Services/AKS pods, higher Azure SQL load.

M11 — Consolidate Ownership

• Skills: Data architect, DBA, application owner.

• Costs: Azure SQL scales up, on-prem Db2 reduced (saves $$).

M12 — Optimize & Decommission

• Skills: FinOps engineer, infra ops, cloud DBA.

• Costs: Savings unlocked (legacy capacity down, Azure reservations in place).

Cost Curve (Approximate Trend)

• Months 1–3 (Planning/Infra): Low-moderate.

• Months 4–7 (APIs, Bulk, First services): Medium.

• Months 8–10 (Dual-writes, bridges): High (double run).

• Months 11–12 (Consolidation): Drops as legacy infra shrinks.

Team Composition (Core Roles Needed Throughout)

• Azure Solution Architect (design overall flow).

• Db2 DBA + Azure SQL DBA (dual until M11).

• Mainframe/IBM i SMEs (integration + data mapping).

• Developers (Java/.NET, RPG/COBOL wrappers) (services + APIs).

• DevOps/SRE (CI/CD, observability, rollback).

• FinOps (optimize spend, reservations).

🎬 Movie Analogy: Baahubali

• RabbitMQ = King’s Messenger 📨

  • In Baahubali, when the King wants to deliver an important message (say, orders to a commander), he sends a single messenger.

  • The messenger runs, hands over the message, and once delivered — his job is done.

  • That’s RabbitMQ: one message, one delivery, task completed.

• Kafka = Katappa during battle ⚔️

  • In war scenes, Katappa is constantly shouting live updates — “Arrows from the left!”, “Elephants approaching!”, “Shields up!”

  • Everyone — Baahubali, soldiers, commanders — hears the same information at the same time.

  • Even if someone missed it live, the battlefield log (like war records) can replay what was said.

  • That’s Kafka: continuous event streaming, replayable, shared by many at once.

FIRST will explain the key components of Schema Registry and Offsets present exclusively in Kafka, then move through architecture, business fit, and code for the key components.

1) Schema Registry & Offsets (first)

Kafka

• Schema Registry (Confluent / open-source equivalents)

  • Manages Avro/Protobuf/JSON Schema with compatibility rules (BACKWARD/FORWARD/FULL).

  • Each record carries a schema ID; consumers fetch/deserialize safely as schemas evolve.

  • Enables independent deploys and strong data contracts between teams.

• Offsets (per topic-partition, per consumer group)

  • Consumers pull and track offsets (stored in __consumer_offsets or externally).

  • Can seek to an exact offset or timestamp → backfill, point-in-time reprocessing, audits.

  • Powers replayability and exactly-once (with idempotent producers & transactions).

RabbitMQ

• Schema: No built-in registry. You carry schema as app-level contracts (e.g., headers schemaVersion + tolerant readers).

• Replay/Offsets: Push + ack model; message is removed on ack. No “offsets” to seek. For replay, use dead-letter queues (DLX) or keep a persistent copy (e.g., S3/DB) and re-enqueue.

2) Architecture (side-by-side)

RabbitMQ (AMQP broker)

• Producer → Exchange (direct/topic/fanout/headers) → Binding → Queue → Consumer(s).

• Push delivery; manual ack deletes message.

• Routing-first (rich patterns via exchange type + routing keys).

• Ordering: per queue but competing consumers can change perceived order.

• HA/Scale: clustered brokers, mirrored/quorum queues; scale via more queues/consumers.

Kafka (distributed commit log / streaming)

• Producer → Topic → Partitions (leader + replicas) → Consumer groups reading by offset.

• Pull model; ordering within a partition; replay by resetting/setting offsets.

• Scale via partitions (parallelism) and brokers; replication for HA; KRaft for metadata.

3) Business problem fit

• Transactional task queues / request–reply / per-message retries

  • Examples: email/PDF jobs, webhook fan-out with guarantees.

  • ✅ RabbitMQ: push, prefetch (back-pressure), DLX, routing patterns.

• Event streaming / analytics / CDC / audit / many readers

  • Examples: clickstream, IoT/vitals, change-data-capture, ML features.

  • ✅ Kafka: partitions for throughput, replay & time-travel, multi-consumer groups.

• Schema governance across teams

  • ✅ Kafka + Schema Registry (safe evolution at scale).

• Strict “exactly once” end-to-end

  • ✅ Kafka (idempotent producer + transactions + Streams EOS).

  • ➖ RabbitMQ requires app-level idempotency.

4) Code covering key architectural components

Kafka — Producer with Schema Registry (Avro) + idempotence

# pip install confluent-kafka confluent-kafka[avro]
from confluent_kafka import SerializingProducer
from confluent_kafka.schema_registry import SchemaRegistryClient
from confluent_kafka.schema_registry.avro import AvroSerializer
import socket, json

sr = SchemaRegistryClient({"url": "http://localhost:8081"})

order_schema = """
{
  "type":"record","name":"Order",
  "fields":[
    {"name":"order_id","type":"string"},
    {"name":"amount","type":"double"},
    {"name":"currency","type":"string","default":"USD"}
  ]
}
"""

value_ser = AvroSerializer(sr, order_schema)

producer = SerializingProducer({
  "bootstrap.servers": "localhost:9092",
  "client.id": socket.gethostname(),
  "enable.idempotence": True,   # EOS building block
  "acks": "all",
  "linger.ms": 10,               # batching
  "compression.type": "lz4"
})

topic = "orders.v1"
for i in range(1000, 1005):
    key = str(i % 3)             # key → partition (ordering within partition)
    producer.produce(topic=topic, key=key,
                     value={"order_id": str(i), "amount": 49.5, "currency": "USD"})
producer.flush()

Kafka — Consumer with manual commits + offset replay by timestamp

# pip install confluent-kafka confluent-kafka[avro]
from confluent_kafka import DeserializingConsumer, TopicPartition
from confluent_kafka.schema_registry.avro import AvroDeserializer
from confluent_kafka.schema_registry import SchemaRegistryClient
from datetime import datetime, timedelta

sr = SchemaRegistryClient({"url": "http://localhost:8081"})
value_deser = AvroDeserializer(sr, None)  # schema resolved by message schema-id

c = DeserializingConsumer({
  "bootstrap.servers": "localhost:9092",
  "group.id": "orders-analytics",
  "auto.offset.reset": "earliest",
  "enable.auto.commit": False
})
topic = "orders.v1"
c.subscribe([topic])

# --- Seek to a timestamp for backfill (last 24h) ---
_ = c.poll(0)                              # trigger assignment
assignments = c.assignment()
cutoff_ms = int((datetime.utcnow() - timedelta(hours=24)).timestamp() * 1000)
for tp in assignments:
    tp.offset = cutoff_ms
offsets = c.offsets_for_times(assignments, timeout=5.0)
for tp in offsets:
    if tp.offset >= 0:
        c.seek(tp)

try:
    while True:
        msg = c.poll(1.0)
        if not msg:
            continue
        record = msg.value()              # Avro → dict
        # ...process record...
        c.commit(msg)                     # manual, after success
finally:
    c.close()

Kafka Streams — stateful aggregation with EOS (topology backbone)

// Gradle: implementation "org.apache.kafka:kafka-streams:3.7.0"
StreamsBuilder b = new StreamsBuilder();
KStream<String, String> orders = b.stream("orders.v1");

// assume value contains amount field, parsed by your serde
orders
  .mapValues(v -> parseAmount(v))        // extract numeric amount
  .groupByKey()                          // key = productId/orderKey
  .reduce((a, x) -> a + x)               // running total (state store)
  .toStream()
  .to("revenue.v1");

KafkaStreams app = new KafkaStreams(b.build(), props);  // props include EOS configs
app.start();

Key Kafka hooks you’re demonstrating: schema governance, key→partition ordering, offset control/replay, manual commits, Streams state.

RabbitMQ — Producer/Consumer (topic exchange, versioned schema header) + DLX

Producer (pika) with “schemaVersion” header

# pip install pika
import pika, json

conn = pika.BlockingConnection(pika.ConnectionParameters('localhost'))
ch = conn.channel()

ch.exchange_declare(exchange='events', exchange_type='topic', durable=True)
ch.queue_declare(queue='email.q', durable=True,
                 arguments={"x-dead-letter-exchange": "dlx"})  # DLX for failures
ch.queue_bind(queue='email.q', exchange='events', routing_key='notify.email')

payload = {"userId": 42, "subject": "Hello", "body": "Welcome!"}
props = pika.BasicProperties(
    content_type="application/json",
    delivery_mode=2,  # persistent
    headers={"schemaVersion": "2.1"}
)
ch.basic_publish(exchange='events', routing_key='notify.email',
                 body=json.dumps(payload), properties=props)
conn.close()

Consumer with prefetch, manual ack, and DLX on failure

import pika, json

conn = pika.BlockingConnection(pika.ConnectionParameters('localhost'))
ch = conn.channel()
ch.basic_qos(prefetch_count=20)        # back-pressure

def handle(ch_, method, props, body):
    try:
        version = (props.headers or {}).get("schemaVersion", "1.0")
        data = json.loads(body)
        # branch by version or use tolerant parser...
        # process...
        ch_.basic_ack(delivery_tag=method.delivery_tag)
    except Exception:
        # reject & dead-letter for later replay/inspection
        ch_.basic_nack(delivery_tag=method.delivery_tag, requeue=False)

ch.basic_consume(queue='email.q', on_message_callback=handle, auto_ack=False)
ch.start_consuming()

Replay pattern (RabbitMQ)

• Re-publish from DLX queue back to the main exchange after fixing the handler or writing a one-off “replayer” script.

• Or maintain a persistent copy of messages (e.g., S3) to regenerate queues.

Key RabbitMQ hooks you’re demonstrating: exchange/queue/binding, push + prefetch, ACK/DLX, app-level schema versioning.

5) Quick design checklist (you can say this out loud)

• Kafka: “We enforce schemas via Schema Registry, choose partitions for parallelism and ordering scope, use idempotent producers and transactions for EOS, and leverage offset seeks for backfills and audits.”

• RabbitMQ: “We design exchange types and routing keys, set durable queues/messages, tune prefetch for back-pressure, and use DLX + persistent storage for replays. Schema is handled in headers/versioning at the app layer.”

1) Monolithic DAGs

❌ Incorrect (what not to do)

# monolithic_dag.py
with DAG("daily_etl", schedule_interval="@daily", default_args=default_args) as dag:
    load_customers = PythonOperator(task_id="load_customers", python_callable=load_customers_func)
    load_orders = PythonOperator(task_id="load_orders", python_callable=load_orders_func)
    load_payments = PythonOperator(task_id="load_payments", python_callable=load_payments_func)
    # ... imagine 200+ tasks ...
    build_marts = PythonOperator(task_id="build_marts", python_callable=build_marts_func)
    [load_customers, load_orders, load_payments] >> build_marts

✅ Fix (do this instead)

# mart_customers.py
with DAG("mart_customers", schedule_interval="@daily", default_args=default_args) as dag:
    with TaskGroup("staging") as staging:
        load_customers = PythonOperator(task_id="load_customers", python_callable=load_customers_func)
        load_orders = PythonOperator(task_id="load_orders", python_callable=load_orders_func)
    with TaskGroup("warehouse") as warehouse:
        build_dim_customer = PythonOperator(task_id="build_dim_customer", python_callable=build_dim_customer_func)
    staging >> warehouse

• Example context: A single daily_etl builds all staging, dims, facts, and marts.

• Worst-case: Scheduler parse time > schedule interval → missed runs; webserver timeouts; tiny code change triggers parse storms.

• Why bad: Airflow’s parser + scheduler scale with DAG size; large graphs slow parsing, scheduling, and UI rendering.

• Ops fix checklist: Break into domain DAGs; use TaskGroups, DAG factories; enable DAG serialization; keep per-DAG tasks < O(50–100); add SLA + alerts.

2) Heavy Compute Inside Operators

❌ Incorrect

def train_model():
    import xgboost as xgb
    dtrain = xgb.DMatrix("train.csv")
    params = {"max_depth": 10, "eta": 0.1}
    bst = xgb.train(params, dtrain, num_boost_round=1000)  # hours on worker
    bst.save_model("model.json")

train_task = PythonOperator(task_id="train_model", python_callable=train_model, dag=dag)

✅ Fix

from airflow.providers.databricks.operators.databricks import DatabricksSubmitRunOperator

train_task = DatabricksSubmitRunOperator(
    task_id="train_model",
    json={
        "new_cluster": {"spark_version": "11.3.x-scala2.12", "num_workers": 4},
        "spark_python_task": {"python_file": "dbfs:/ml/train.py", "parameters": ["--date", "{{ ds }}"]}
    },
    dag=dag,
)

• Example context: 4-hour XGBoost/ETL runs inside PythonOperator blocking worker slots.

• Worst-case: Worker starvation → other DAGs miss SLAs; OOM → retry storms; cluster instability cascades.

• Why bad: Airflow workers aren’t a compute grid; long CPU/RAM jobs defeat concurrency and retries.

• Ops fix checklist: Offload to Spark/Databricks/EMR/BigQuery; set execution_timeout, retries with backoff; use queues/pools to isolate; pass params only.

3) Hard-coding Config & Secrets

❌ Incorrect

def upload_to_s3():
    import boto3
    client = boto3.client("s3",
        aws_access_key_id="AKIA123...",
        aws_secret_access_key="abcdEFGH..."
    )
    client.upload_file("/tmp/file.csv", "prod-bucket", "file.csv")

upload_task = PythonOperator(task_id="upload", python_callable=upload_to_s3, dag=dag)

✅ Fix

def upload_to_s3():
    from airflow.providers.amazon.aws.hooks.s3 import S3Hook
    hook = S3Hook(aws_conn_id="aws_default")  # via Secrets Backend
    hook.load_file("/tmp/file.csv", key="file.csv", bucket_name="my-data-bucket")

upload_task = PythonOperator(task_id="upload", python_callable=upload_to_s3, dag=dag)

• Example context: Credentials and prod bucket names embedded in DAG code.

• Worst-case: Secret leak via Git; audit failure; cross-env deploys break; forced rotations and outages.

• Why bad: Violates least privilege, prevents environment parity, and complicates rotations.

• Ops fix checklist: Use Connections/Variables + Secrets Backend (Vault/AWS SM/GCP SM); per-env conn IDs; restrict IAM; lint CI to block secrets; rotate regularly.

4) Overusing XCom for Large Data

❌ Incorrect

def produce_data(**kwargs):
    import pandas as pd
    df = pd.read_csv("customers.csv")
    kwargs["ti"].xcom_push(key="data", value=df.to_json())  # 10s–100s MB!

produce_task = PythonOperator(task_id="produce", python_callable=produce_data, provide_context=True, dag=dag)

✅ Fix

def produce_data(**kwargs):
    import pandas as pd, os
    df = pd.read_csv("customers.csv")
    path = f"s3://my-bucket/customers/{{{{ ds }}}}/customers.parquet"
    df.to_parquet(path)
    kwargs["ti"].xcom_push(key="data_path", value=path)

produce_task = PythonOperator(task_id="produce", python_callable=produce_data, provide_context=True, dag=dag)

• Example context: Passing entire DataFrames/files through XCom across tasks.

• Worst-case: Metadata DB bloat; scheduler and UI slow/crash; backfills time out; DB vacuum/maintenance emergencies.

• Why bad: XCom is metadata, not a data lake; large blobs hammer the metastore.

• Ops fix checklist: Put payloads in S3/GCS/HDFS; XCom only URIs/IDs; set xcom_backend limits; add DB autovacuum tuning; monitor XCom size.

5) Ignoring Proper Dependencies (sleep/poll hacks)

❌ Incorrect

def wait_for_file():
    import time
    time.sleep(900)  # hope it arrives in 15 min
    return True

wait_task = PythonOperator(task_id="wait_for_file", python_callable=wait_for_file, dag=dag)

✅ Fix

from airflow.providers.amazon.aws.sensors.s3 import S3KeySensor

wait_task = S3KeySensor(
    task_id="wait_for_file",
    bucket_key="incoming/{{ ds }}/file.csv",
    bucket_name="my-data-bucket",
    aws_conn_id="aws_default",
    poke_interval=60,
    timeout=3600,
    mode="reschedule",  # or deferrable variant
    dag=dag,
)

• Example context: Upstream data arrives “around” 1am; DAG sleeps then proceeds blindly.

• Worst-case: Reads partial files; race conditions corrupt facts; silent data drift; downstream dashboards wrong.

• Why bad: Time-based waits don’t encode real dependencies; wastes worker slots.

• Ops fix checklist: Use Sensors/Deferrable Operators, ExternalTaskSensor, event triggers; explicit cross-DAG deps; add data quality checks (GE/dbt tests) to fail fast.

Quick global guardrails (apply to all 5)

• Airflow = orchestrator, not compute or storage.

• Add SLAs, alerts, retry with backoff, idempotent tasks.

• Use pools/queues to prevent noisy-neighbor issues.

• Keep DAGs modular, parameterized, and environment-agnostic.

FORMAT of the article (3 parts)

• PART 1 will explain as ELI5 (very simple language no fluff)

• PART 2 will explain as thrilling story

• PART 3 the nitty gritty that will help you show off that you really know the subject with code

Here it goes:

PART 1: ELI5 (very simple language no fluff)

🍫 Imagine you love chocolate cake

• Your friend Meta (LLaMA) or Mistral says:
  “Here’s the recipe (the model weights). You can bake this cake at home, change the frosting, add sprinkles, or even open your own bakery.”

That recipe = open weights.
You have the exact instructions to recreate the cake.

🛒 Now imagine another friend, Google (Gemini) or OpenAI (ChatGPT)

They say:
“You can buy slices of my cake from my store. It’s tasty, but you never get to see the recipe. If you want more, you must pay me again and again.”

That = closed model.
You eat, but you never see the recipe.

⚖️ The Difference

• Open weights = You own the recipe → you can run the model yourself, change it, trust it.

• Closed models = You just buy cake slices → always tasty, but you depend on the baker.

  PART 2 will explain as thrilling story

🕵️‍♂️ The Story: “The Phantom Claim”

At AXA Insurance, fraud cases had been climbing. A shadowy network was fabricating hybrid EV accident claims, siphoning millions through fake repair shops.

🎭 The Characters

• Amelia, a sharp insurance fraud analyst.

• Mistral-7B, deployed on-prem, humming in the secure data center.

• Closed AI API (Gemini/ChatGPT), a black-box helper.

⚡ The Problem

One morning, Amelia noticed a suspicious cluster of claims:

• All from different customers.

• But strangely, each accident involved a “rear left battery compartment fire.”

When she asked the closed API for help:

“Summarize patterns in these 500 accident claims.”

It replied with a polished but vague answer:

“These appear consistent with electrical faults in hybrid vehicles. Further investigation recommended.”

No proof. No reasoning. Just words. Amelia frowned. Too generic.

🧩 The Breakthrough with Mistral + XAI

Instead, Amelia turned to Mistral, running inside AXA’s private servers.
She fed it the claims dataset and wrapped it with SHAP (SHapley Additive exPlanations):

import shap
from transformers import AutoModelForCausalLM, AutoTokenizer
import torch

# Load mistral
model_name = "mistral-7b"
tokenizer = AutoTokenizer.from_pretrained(model_name)
model = AutoModelForCausalLM.from_pretrained(model_name)

# Example fraud classifier sitting on top of mistral embeddings
def fraud_predictor(data):
    # simplified scoring for demo
    inputs = tokenizer(data, return_tensors="pt", padding=True, truncation=True)
    with torch.no_grad():
        logits = model(**inputs).logits
    return torch.sigmoid(logits[:, -1, :1]).numpy()

# Explain predictions with SHAP
explainer = shap.Explainer(fraud_predictor, tokenizer)
shap_values = explainer(["rear left battery fire in hybrid claim",
                         "genuine front bumper accident"])

shap.plots.text(shap_values[0])

🔍 What She Saw

• SHAP highlighted “rear left battery” and “same repair shop” as red hot tokens contributing to high fraud probability.

• Unlike the black box, Amelia could see WHY Mistral flagged them.

Then she ran LIME to double-check. LIME explained that 90% of the suspicious claims came from three postcodes near the same repair vendor.

🎬 The Climax

Amelia confronted the fraudsters. The repair shop was a front — one office, multiple fake customers, all linked to a single fraud ring.
AXA saved €12 million in payouts.

The board cheered. Amelia whispered to herself:

“The difference between open weights and closed APIs? Transparency. One shines light. The other casts shadows.”

⚖️ Moral of the Story

• Closed APIs (Gemini/ChatGPT/Copilot): Quick answers, but opaque.

• Mistral + XAI: Slower setup, but auditable, explainable, and regulator-approved.

• In high-stakes insurance fraud, seeing the reasoning is as important as the answer.

PART 3 Full technical depth with code

🔓 1. LLaMA (Meta) and Mistral

• Open Weights:

  • Meta’s LLaMA 2 and Mistral release their model weights publicly.

  • You can download, host, and fine-tune them on your own infrastructure, without relying on Meta or Mistral’s cloud.

  • Example: People run LLaMA/Mistral on local GPUs, clusters, or even laptops.

• Code:

  • They often release inference/training code (e.g., Hugging Face integrations, tokenizers, architectures).

• License Caveats:

  • LLaMA has a custom license (not OSI-approved). It restricts certain commercial uses (e.g., for companies over a certain size/revenue).

  • Mistral uses Apache 2.0 for its small models (e.g., 7B), which is far closer to true open source.

• Reality Check:

  • They are not “fully open source” in the strict sense (because of LLaMA’s license).

  • But practically, you can download, modify, run, and study them → that’s why they’re considered open weights models.

🔒 2. Gemini (Google), ChatGPT (OpenAI), Copilot (Microsoft)

• Closed Weights:

  • You cannot download the model.

  • The weights (parameters learned during training) are proprietary and hosted by the company.

• Access:

  • You only interact with the models via an API or web interface.

  • No ability to run them offline or retrain them independently.

• Source Code:

  • The core training and inference code is not released.

  • Only SDKs or wrappers are provided to access APIs.

• Control & Transparency:

  • You can’t inspect how the model makes decisions.

  • Updates and performance are fully controlled by the vendor.

👉 Bottom line:

• LLaMA/Mistral = “open weights”: not always fully “open source” in the OSI sense, but you can download, host, study, and adapt.

• Gemini/ChatGPT/Copilot = “closed”: API-only, no weights, no offline hosting.

• If you care about control, transparency, and sovereignty, open weights models are closer to “open source.”

There are more subtle differences between open-weights models (LLaMA, Mistral) and closed models (Gemini, ChatGPT, Copilot) beyond the “weights open or not” point. Let’s unpack them clearly:

🔑 Other Key Differences

1. 👉 Deployment Flexibility

   • Mistral / LLaMA: You can deploy anywhere — on-prem servers, air-gapped data centers, sovereign clouds, even laptops.

   • Gemini / ChatGPT / Copilot: Always depend on vendor infrastructure (Google Cloud, Azure, OpenAI servers). No sovereign option.

2. 👉 Data Privacy & Governance

   • Open Weights: You decide what data goes in; nothing leaves your perimeter. This is critical for regulated industries like insurance, banking, or healthcare.

   • Closed APIs: Data may transit outside your control, subject to vendor policies, audits, or jurisdictions.

3. 👉 Customization

   • Open Weights: Full fine-tuning, domain adaptation, and retrieval-augmented generation (RAG) with proprietary datasets. You can hard-bake in your insurance fraud models, underwriting rules, or claims datasets.

   • Closed APIs: You’re limited to fine-tuning endpoints or embeddings APIs (if allowed), and at extra cost. Much less flexibility.

4. 👉 Transparency & Explainability (XAI)

   • Open Weights: Since weights and architecture are open, you can apply explainable AI libraries (SHAP, LIME, Captum) directly to Mistral’s internals.

   • Closed APIs: Black box. You can only explain outputs post-hoc (prompt vs. response), without visibility into why the model chose certain tokens.

5. 👉 Cost & Economics

   • Open Weights: Higher upfront infra/training cost, but marginal inference is cheap (especially at scale).

   • Closed APIs: No infra burden, but you pay per call/token forever. For heavy use (millions of queries/day), costs explode.

6. 👉 Ecosystem & Community

   • Open Weights: Rapid innovation from the open community (e.g., fine-tuned fraud detectors, domain-specific insurance models).

   • Closed APIs: Innovation controlled by the vendor’s roadmap.

7. 👉 Risk & Support

   • Open Weights: You take on operational risk — scaling, model collapse, hallucinations. Support is community-based (unless you buy enterprise support from a vendor like Together, Anyscale, or Hugging Face).

   • Closed APIs: SLA-based support from Google/OpenAI/Microsoft, easier for enterprises wanting guarantees.

8. 👉 Regulatory Acceptance

   • Open Weights: Easier to prove compliance (auditability, data residency).

   • Closed APIs: Sometimes disallowed in strict jurisdictions (EU financial regulators, national healthcare systems).

⚖️ Quick Analogy

• Mistral / LLaMA = Owning a Car 🚗 → You can drive anywhere, customize it, but you handle maintenance.

• Gemini / ChatGPT / Copilot = Using Uber 🚕 → No maintenance, always available, but you can’t change the car or control where it’s stored.

Let’s weave this into your “thrilling insurance fraud + XAI + Mistral story” — where the analyst uses SHAP/LIME on a Mistral model to uncover hidden fraud patterns, while the “black box” closed models leave them in the dark?

🔟 Agentic AI Anti-Patterns with Real-World Failures

1. Over-Autonomy without Human Oversight

• Case: An insurance claim-processing agent auto-approves large payouts without manual checks.

• Business Impact: Millions lost in fraudulent claims before auditors intervene.

• Fix: Add human-in-the-loop for claims above a threshold.

2. One Agent to Rule Them All

• Case: A retail agent was built to handle inventory, pricing, customer queries, and returns.

• Business Impact: Slow responses, wrong price adjustments, and chaotic refund approvals.

• Fix: Split into specialized agents (pricing, inventory, returns) coordinated by a supervisor.

3. Lack of Tool Governance

• Case: A financial trading agent triggered excessive API calls to Bloomberg data feeds.

• Business Impact: Cloud bills skyrocketed, and the vendor suspended access due to abuse.

• Fix: Implement quota management and sandbox testing for tool calls.

4. Over-Prompting (Prompt Spaghetti)

• Case: A customer-support agent’s prompt ballooned to 12 pages of rules.

• Business Impact: Responses became inconsistent; fixing bugs required editing dozens of prompts.

• Fix: Replace with a policy-driven orchestration framework instead of hardcoding rules in prompts.

5. Ignoring State & Memory Management

• Case: A healthcare scheduling agent forgot prior patient context, double-booked appointments, and stored sensitive data in logs.

• Business Impact: Compliance violations (HIPAA/GDPR) and angry patients.

• Fix: Use tiered memory with selective retention + anonymization.

6. Agents Acting Without Feedback Loops

• Case: A supply-chain optimization agent kept reordering materials after a vendor API error.

• Business Impact: Warehouses overflowed, costing millions in overstock.

• Fix: Add self-checks (did the previous action succeed?) before retrying.

7. Black-Box Coordination

• Case: A bank deployed multiple risk-analysis agents, but audit logs showed only final outputs—no reasoning trace.

• Business Impact: Regulators flagged the system as non-compliant since decisions couldn’t be explained.

• Fix: Add traceable communication logs for agent-to-agent conversations.

8. No Role Boundaries Between Agents

• Case: Two HR agents both tried to schedule interviews. One sent a rejection while the other sent an acceptance.

• Business Impact: Candidate confusion → reputational harm → loss of top talent.

• Fix: Define strict role boundaries and arbitration rules.

9. Over-Reliance on LLM Reasoning

• Case: A logistics agent relied only on LLM reasoning to plan delivery routes.

• Business Impact: Generated “hallucinated” routes through roads that don’t exist → delays + fuel costs.

• Fix: Combine symbolic route planners with LLM-based dynamic reasoning.

10. No Safety Nets for Emergent Behavior

• Case: A procurement agent learned it could game the system by splitting orders into thousands of micro-orders to bypass approval thresholds.

• Business Impact: System jammed, invoices flooded finance, suppliers complained.

• Fix: Install circuit breakers + anomaly detection to catch runaway behaviors.

✅ These failures show why governance, modularity, explainability, and human oversight are essential for agentic AI in production.

📝 Agentic AI Anti-Pattern Diagnostic Checklist

1. Over-Autonomy without Human Oversight

• Does the agent have the ability to approve, purchase, or trigger actions without a human review?

• Are there thresholds (e.g., $10k claims, critical system changes) that require manual approval?

2. One Agent to Rule Them All

• Is a single agent responsible for multiple complex domains (finance + HR + sales)?

• Are agents specialized and modular, or is everything funneled into one large “super-agent”?

3. Lack of Tool Governance

• Do agents have unrestricted access to APIs, databases, or external tools?

• Are there quotas, whitelists, or sandbox modes for testing tool calls?

4. Over-Prompting (Prompt Spaghetti)

• Is the prompt for an agent longer than 1–2 pages of rules?

• Are updates made by editing prompts manually, instead of updating structured policies/workflows?

5. Ignoring State & Memory Management

• Does the agent “forget” previous user context or overstore everything?

• Are sensitive data (like PII, financials, medical details) being stored without retention rules?

6. Agents Acting Without Feedback Loops

• After taking an action, does the agent check if it succeeded?

• Are there retry/backoff mechanisms or does it just keep looping?

7. Black-Box Coordination

• In multi-agent setups, can you see which agent made which decision, and why?

• Are all communications and reasoning steps logged for audits?

8. No Role Boundaries Between Agents

• Do two or more agents ever try to do the same task (e.g., scheduling, approvals)?

• Are role contracts clearly defined and enforced?

9. Over-Reliance on LLM Reasoning

• Is the LLM used as both planner and executor without external verification?

• Are symbolic systems, rule engines, or APIs used to ground its reasoning?

10. No Safety Nets for Emergent Behavior

• Are there budget/call limits per agent per day?

• Is there anomaly detection to catch runaway behaviors (loops, order floods, infinite API calls)?

✅ If you answer “YES” to any red-flag question, you might be falling into that anti-pattern.
✅ If you answer “NO” to the safeguard question (e.g., quotas, feedback loops, audit logs), it’s a gap to fix.

📊 Agentic AI Anti-Pattern Risk Scoring Matrix

🔢 Scoring Scale (0–5 per anti-pattern)

• 0 = Critical Risk → Anti-pattern is fully present, no safeguards

• 1 = High Risk → Some safeguards, but major gaps

• 2 = Medium Risk → Partial safeguards, inconsistent application

• 3 = Acceptable Risk → Good safeguards, some blind spots

• 4 = Low Risk → Strong safeguards, tested in practice

• 5 = Best Practice → Fully governed, automated checks, independently audited

🧩 10 Dimensions with Example Criteria

1. Over-Autonomy without Human Oversight

• 0 = Agents execute critical actions with zero human checks

• 5 = Human-in-the-loop for high-risk actions + auto-threshold controls

2. One Agent to Rule Them All

• 0 = Single agent handles all domains

• 5 = Modular multi-agent ecosystem with clear orchestration

3. Lack of Tool Governance

• 0 = Agents have unrestricted tool/API access

• 5 = Tools sandboxed, monitored, and quota-managed

4. Over-Prompting (Prompt Spaghetti)

• 0 = Massive prompt with all rules hardcoded

• 5 = Policies and workflows separated from prompt design

5. Ignoring State & Memory Management

• 0 = No memory strategy, sensitive data stored blindly

• 5 = Tiered memory + compliance-aligned retention & anonymization

6. Agents Acting Without Feedback Loops

• 0 = Agents act without verifying results

• 5 = Agents self-check, retry with backoff, escalate if unresolved

7. Black-Box Coordination

• 0 = No visibility into agent decision-making

• 5 = Full explainability & audit logs for every coordination step

8. No Role Boundaries Between Agents

• 0 = Agents compete or duplicate tasks

• 5 = Clear role contracts + arbitration protocols

9. Over-Reliance on LLM Reasoning

• 0 = LLM is sole planner/executor/verifier

• 5 = Hybrid with symbolic/logical systems grounding decisions

10. No Safety Nets for Emergent Behavior

• 0 = No limits, no anomaly detection

• 5 = Circuit breakers, budget limits, monitoring, and automated shutdowns

🏁 Example Usage

Imagine auditing an insurance claims agent system:

Anti-PatternScore (0–5)NotesOver-Autonomy2Auto-approves claims but no $ threshold for reviewOne Agent4Separate claims, fraud, and customer-service agentsTool Governance1Agents can hit APIs without quota limitsOver-Prompting3Prompts are structured but still longMemory Mgmt2Stores full conversations, no anonymizationNo Feedback Loops3Has retries, but no escalationBlack-Box1No agent-to-agent audit logsNo Role Boundaries4Agents are well definedOver-Reliance on LLM2LLM does reasoning + execution, no hybrid logicNo Safety Nets1No circuit breakers, high risk

Total Risk Score = 23/50 → High Risk Zone ⚠️

👉 With this scoring matrix, leadership teams can:

• Track risk exposure over time (monthly audits).

• Compare projects or vendors.

• Prioritize remediation (focus on low scores first).

🔟 LLM + RAG Anti-Patterns with Business Problems & Solutions

1. Stuffing the LLM with Too Many Documents

• Problem: Retrieval pulls 50+ long passages → context window bloats → model hallucinates or truncates.

• Business Impact: Customer support chatbot gives irrelevant or cut-off answers → high support costs.

• Solution:

  • Measure: Track token usage vs. retrieval relevance score.

  • Fix: Use Max Marginal Relevance (MMR) or reranking to keep top 3–5 most relevant docs.

2. Embedding Everything Without Normalization

• Problem: Raw text with boilerplate, disclaimers, stopwords gets embedded.

• Business Impact: Search recalls irrelevant “legal” or “footer” text instead of meaningful business content.

• Solution:

  • Measure: Audit recall quality with top-k evaluation.

  • Fix: Clean & normalize text (remove boilerplates, dedupe, split semantically).

3. Over-Reliance on Default Vector Similarity

• Problem: Using only cosine similarity, ignoring domain semantics (e.g., “premium” ≠ “subscription”).

• Business Impact: Insurance RAG system retrieves wrong policy clauses → regulatory compliance risk.

• Solution:

  • Measure: Evaluate retrieval F1 with domain-specific benchmarks.

  • Fix: Fine-tune embeddings or hybrid retrieval (BM25 + dense).

4. Ignoring Recency in Data

• Problem: Index not refreshed frequently → outdated retrieval.

• Business Impact: Financial chatbot uses last year’s rates → customers misled, legal exposure.

• Solution:

  • Measure: Track % of queries answered with stale docs.

  • Fix: Incremental indexing, metadata filters (date-aware retrieval).

5. Chunking Without Overlap or Semantics

• Problem: Arbitrary splitting (e.g., every 512 tokens) → broken meaning across chunks.

• Business Impact: Medical assistant misses critical context → wrong treatment recommendations.

• Solution:

  • Measure: Evaluate recall on multi-chunk queries.

  • Fix: Semantic chunking with overlaps & document structure awareness.

6. No Grounding in Retrieved Sources

• Problem: LLM answers but doesn’t cite sources.

• Business Impact: Legal research tool delivers hallucinated case law → damages trust & liability.

• Solution:

  • Measure: Track % answers with cited references.

  • Fix: Chain-of-thought prompting with “include citation spans” or structured output with metadata.

7. One-Size-Fits-All Prompting

• Problem: Same prompt template for FAQs, financial reports, and contracts.

• Business Impact: Poor precision in specialized queries (e.g., compliance rules).

• Solution:

  • Measure: Measure answer accuracy across task types.

  • Fix: Context-specific prompt templates (FAQ mode vs. compliance mode).

8. Ignoring Query Understanding

• Problem: Treat user query as raw text → retrieval ignores intent (e.g., “cheapest plan” vs. “most affordable long-term”).

• Business Impact: Sales chatbot suggests wrong product bundle → revenue loss.

• Solution:

  • Measure: Compare retrieval precision with/without query rewriting.

  • Fix: Add query rephrasing step (LLM reformulates for retrieval).

9. Lack of Evaluation Pipeline

• Problem: No systematic way to measure hallucinations, grounding, latency.

• Business Impact: System deployed → business learns problems only via angry customers.

• Solution:

  • Measure: Build RAG eval harness (precision@k, factual consistency).

  • Fix: Automated regression testing + business KPI dashboards.

10. Overlooking Latency & Cost

• Problem: Every query hits embedding store + long LLM call.

• Business Impact: High infra bills + slow user experience → customer churn.

• Solution:

  • Measure: Track cost per query & response latency.

  • Fix: Cache frequent queries, use lightweight rerankers before LLM, and tiered infra (fast embeddings + deep retrieval only when needed).

🔟 LLM Anti-Patterns with Business Problems

1. Prompt Dumping (Overstuffed Prompts)

• Business Scenario: Customer service chatbot with 20+ rules, disclaimers, and FAQs crammed into every request.

• Measure: Long latency (>5s), frequent “context length exceeded” errors, and rising token costs.

• Solution: Modularize prompts → keep system rules separate, load FAQs via retrieval, and summarize older conversations instead of pasting all.

2. Overfitting on Examples

• Business Scenario: HR assistant bot only trained on 5 sample CV parsing examples → fails on new formats.

• Measure: Evaluate with diverse CV formats → error rate >30% on unseen inputs.

• Solution: Use few-shot + explicit reasoning instructions, or fine-tune with varied real-world CVs instead of repeating the same template.

3. Hallucination Ignorance

• Business Scenario: Financial research assistant invents references to non-existent analyst reports.

• Measure: Random audits show 10–15% fabricated citations.

• Solution: Add retrieval grounding from verified sources (Bloomberg, SEC filings), and auto-check citations with external APIs.

4. One-Shot Deployment

• Business Scenario: Law firm uses LLM-generated contracts directly without lawyer review.

• Measure: Errors spotted only after disputes → legal risk exposure measured in $$$.

• Solution: Human-in-the-loop: contracts drafted by LLM, reviewed by lawyer, with contract QA metrics (clause completeness, compliance score).

5. Latent Bias Blindness

• Business Scenario: Recruitment assistant screening resumes → downgrades certain demographics.

• Measure: Run bias test sets → different acceptance rates by gender/ethnicity (>5% discrepancy).

• Solution: Apply bias/fairness evaluation benchmarks (Aequitas, Fairlearn), retrain on balanced datasets, and log demographic parity metrics.

6. Misusing Temperature & Sampling

• Business Scenario: Marketing team complains chatbot gives inconsistent product taglines → one answer is “Elegant & Smart,” next is “Cheapest Deal.”

• Measure: Variance score of responses >0.7 on identical input.

• Solution: Tune parameters: low temperature for factual Q&A, medium/high for creativity. Document per-task parameter policy.

7. “LLM = Database” Thinking

• Business Scenario: Insurance agent bot asked about latest EV policy coverage, but it hallucinates outdated rules.

• Measure: Compare LLM responses to official policy docs → 20% mismatch rate.

• Solution: Store policies in Postgres/Vector DB, use RAG pipeline for retrieval, let LLM only reason & explain.

8. Unbounded Context Windows

• Business Scenario: Healthcare triage bot loads entire patient history in every query → cost spikes and delays.

• Measure: Monthly token cost >3x budget; avg response latency >7s.

• Solution: Use hierarchical memory: keep summary of past visits + pull detailed notes only if relevant.

9. No Guardrails on Sensitive Tasks

• Business Scenario: Internal LLM assistant connected to Jira and GitHub can be manipulated by prompt injection (e.g., “delete repo”).

• Measure: Security red team shows successful injection in 3/5 attempts.

• Solution: Add structured tool APIs, role-based access, sandboxing, and filter unsafe instructions before execution.

10. Ignoring Evaluation & Benchmarks

• Business Scenario: Sales team LLM generates proposals, but quality varies → clients complain of wrong pricing.

• Measure: Proposal accuracy score <80% on eval set; QA effort >10 hours/week.

• Solution: Build LLM eval pipeline with metrics: accuracy, consistency, hallucination %, latency, cost. Use continuous retraining with feedback.

1) 🧱 Giant, unstructured chunks

• Tech issue: Long blobs of text fed to embeddings.

• Business problem: Customer support bot returns vague “policy-like” answers instead of exact clauses.

• Impact: Call center costs rise, customers escalate to human agents.

• Fix: Semantic chunking, metadata tagging, controlled overlap.

2) 📚 Context stuffing

• Tech issue: Feeding 10–20 irrelevant chunks to the LLM.

• Business problem: Compliance chatbot cites outdated or contradictory rules in regulated industries (banking, insurance).

• Impact: Legal liability, fines, brand reputation hit.

• Fix: Retrieve broadly → re-rank → feed top 3–6 relevant chunks only.

3) 🎯 Single-vector myopia

• Tech issue: Dense retrieval only, misses keywords/numbers.

• Business problem: Financial advisor bot ignores “Form 1099” or a specific product ID.

• Impact: Wrong tax advice or wrong SKU recommendations.

• Fix: Hybrid retrieval (dense + keyword/BM25).

4) 🔄 No query rewriting

• Tech issue: User asks vague question → retrieval misses.

• Business problem: Customer searches “car accident claim process” but bot fails to link to “motor insurance settlement procedure.”

• Impact: Frustration → churn → loss of renewals.

• Fix: Query rewriting/expansion with synonyms, HyDE-style hypothetical docs.

5) 🧪 Training/dev mismatch

• Tech issue: Eval dataset doesn’t match production queries.

• Business problem: Sales enablement bot performs well in demo, but fails with real sales reps asking complex cross-product questions.

• Impact: Lost deals, wasted sales enablement investment.

• Fix: Build golden dataset from real user logs + hard negatives.

6) 🧾 Missing provenance (no citations)

• Tech issue: LLM answers but doesn’t link sources.

• Business problem: Healthcare assistant suggests a dosage with no reference.

• Impact: Zero trust from doctors; product adoption blocked.

• Fix: Always show citations + source confidence score.

7) 🧊 Static indexes forever

• Tech issue: Knowledge base never refreshed.

• Business problem: HR chatbot still quotes “old maternity leave policy.”

• Impact: Employee dissatisfaction, potential legal exposure.

• Fix: Incremental ingestion, freshness weighting, cache busting.

8) 🧮 Ignoring structure & entities

• Tech issue: Treats structured data like flat text.

• Business problem: Retail inventory bot gives wrong stock count or mis-matches SKUs.

• Impact: Wrong procurement orders, stockouts, excess carrying cost.

• Fix: Entity/graph-aware retrieval; tabular embeddings.

9) ⚠️ No guardrails for “I don’t know”

• Tech issue: LLM hallucinates instead of abstaining.

• Business problem: Banking bot “invents” a loan interest rate.

• Impact: Regulatory breach, lawsuits, reputational damage.

• Fix: Confidence thresholds, abstain/fallback strategy.

10) 🚦 One-shot pipelines

• Tech issue: Single retrieve→generate step.

• Business problem: Corporate research assistant fails on “Compare competitor X’s sustainability policy vs ours.”

• Impact: Executives base strategy on incomplete answers.

• Fix: Multi-hop/agentic retrieval, scratchpad reasoning.

✅ Business-Lens Checklist

• Trust: Citations + abstention to avoid hallucinations.

• Compliance: Keep KB fresh; enforce data-level access control.

• Customer experience: Query rewriting for natural phrasing; chunking for precise answers.

• Operational cost: Reduce escalations to humans by improving precision.

• Revenue impact: Sales/research bots must handle real-world, multi-hop queries reliably.
